RayXact
Builders laser level | BuilderPro 4D 360
Builders laser level | BuilderPro 4D 360
Couldn't load pickup availability
Repositioning a standard cross-line laser four times across a bare concrete shell to cover all four walls isn't a workflow, it's a time tax you pay on every multi-surface job. I ran into this exact problem framing out a commercial tenant space: the room was 60 feet deep, and a two-line unit meant constant repositioning just to keep a consistent reference around the perimeter. When I put a 4D 16-line builders laser level in the center of that shell, it projected simultaneously onto every wall, the floor, and the ceiling. Setup time dropped from 20 minutes of repositioning to under 60 seconds.
That's the job this laser level was engineered for: full-room coverage in a single placement, with no trade waiting on another to re-establish their reference line.
Why This 4D Builders Laser Level Stands Out?
The self-leveling system brings all 16 lines into calibration automatically. For multi-trade work, framing, MEP rough-in, and finish carpentry happening in sequence, a single consistent 360° reference that resets itself each morning removes the argument about whose reference line is correct.
Key Specifications of the BuilderPro Laser level:
| Projection System | 16 Lines, 4D, 4 horizontal + 8 vertical + ceiling/floor planes, all projected simultaneously from one position |

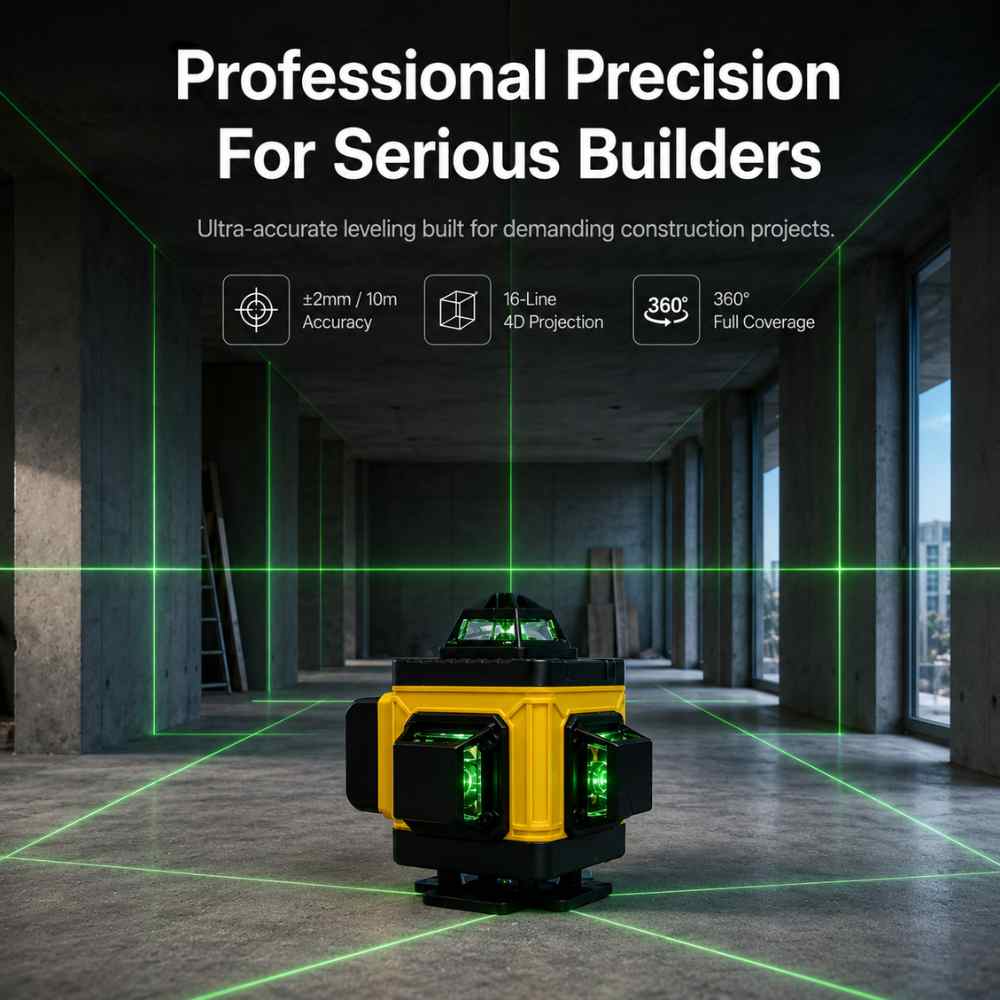

| Accuracy | ±2mm at 10m, tight enough for large-format tile runs and suspended ceiling grids without intermediate checks |
| Beam Wavelength | 515nm green, approximately 4× more visible to the human eye than red laser at equivalent power |

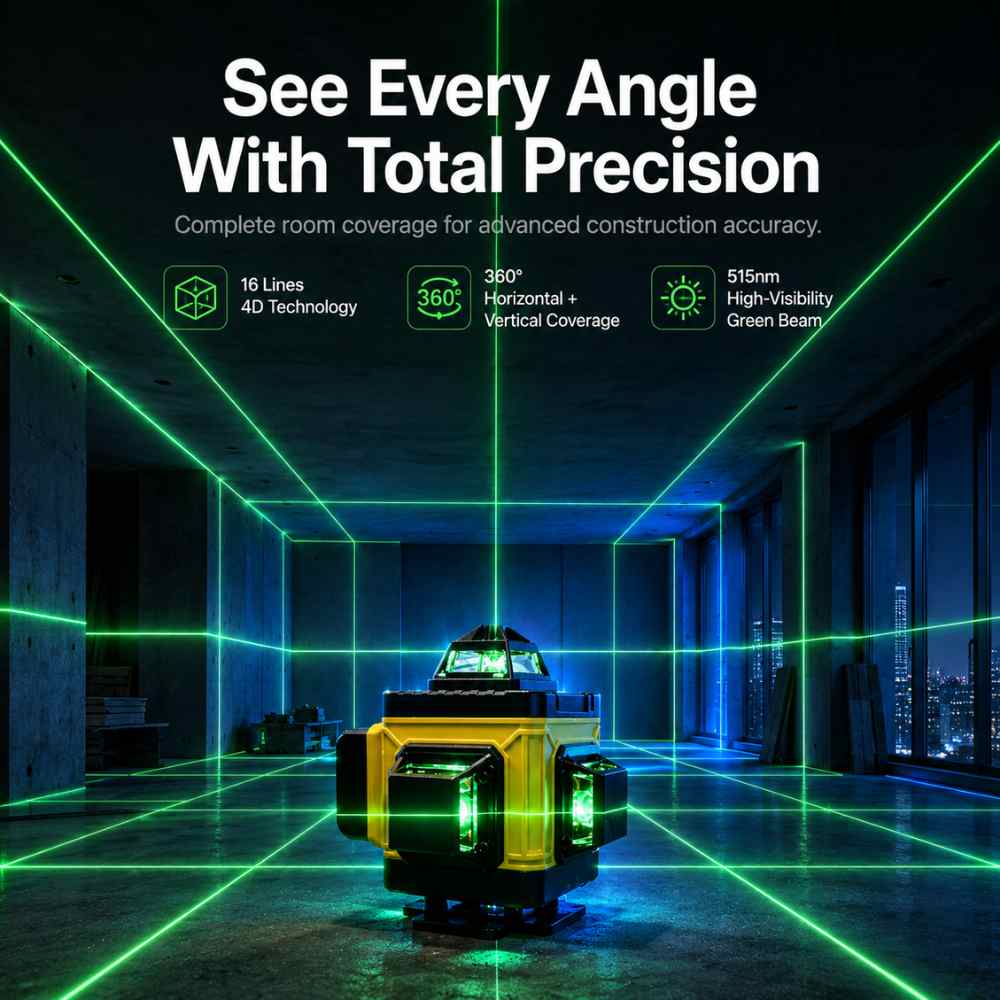

| Coverage | 360° horizontal + 360° vertical, complete room envelope from a single center-of-room position |
| Control | Wireless remote + dedicated H / V buttons on unit for line selection without returning to the instrument |
| Power Source | Rechargeable lithium battery pack with included charger, no AA drain mid-session on a long install day |
| Leveling Mode | Automatic self-leveling, compensates for minor surface irregularities on placement |
| Included Accessories | Lifting frame, adjustable bracket, magnetic iron sheet, remote control, cloth carry case, charger |
Perfect For Full-Building Interior Fit-Outs:
The included lifting frame adds height adjustment for setups where a full tripod isn't practical. For jobs where you do want tripod stability across a large slab or uneven subfloor, pair it with a compatible laser tripod from our tripod collection, the standard 5/8"-11 thread mounts directly.
If your next project involves more than two walls and more than one trade referencing the same lines, a 16-line 4D unit isn't an upgrade, it's the tool that removes the variable that causes rework.
Share
FAQ - Laser level
What is a laser level and how does it work?
A laser level projects a beam of coherent light to establish a precise horizontal or vertical reference line across a surface. Self-leveling models use a magnetic pendulum dampened in fluid to find level automatically within ±4° of plumb a process that takes 3 to 5 seconds on most cross-line units.
If you place the tool on a surface inclined beyond that range, the beam flashes as an out-of-level warning rather than projecting a false line. This is a critical safety feature. Cross-line models cover interior rooms up to 65 feet without a detector. Rotary models spin the beam 360 degrees and reach 300+ feet outdoors with a compatible detector.
Is a green beam laser level worth the extra cost over a red beam?
For interior work in lit rooms, yes. Green beams emit at 505–525 nm a wavelength the human eye perceives as significantly brighter than the 630–680 nm red spectrum at identical power output. In a daylit room:
Green beam: stays readable at 50–65 feet without a detector
Red beam: fades to unreliable at 20–30 feet under the same conditions
The trade-off is battery life: green diodes draw more current and reduce runtime by 20–40% vs equivalent red models. For outdoor grading where you run a detector regardless, red beam's battery advantage matters more. For tile layout, cabinet runs, drop ceiling grids, and any daylit interior room, green beam justifies its cost at every price tier in the RayXact catalog.
