Laser Level for Deck Building | DeckLine 360™
Laser Level for Deck Building | DeckLine 360™
Couldn't load pickup availability
Snapping a chalk line across a sloped deck frame only works until the surface breaks elevation, then you're back to guessing angles and hoping the fascia boards line up at the corners. I learned that the hard way on a 400 sq ft wraparound deck where a 4% grade ran the full length of the structure. What changed the job was switching to a laser level with a dedicated tilt mode: two seconds to hold the button, the pendulum unlocks, and the beam follows any slope I dial in, no chalk, no second person holding a string, no accumulated error at the end of the run.
That's the defining feature of this laser level for building: a dual-mode system that auto-levels flat surfaces at ±0.2mm/m and manually locks angled beams on sloped ones, with a 30m outdoor-visible green beam and wireless remote so one person can run the whole layout solo.
Why This Laser Level deck Stands Out for Outdoor Work?
Most multi-line lasers are built around flat interior surfaces, they auto-level, project their grid, and that's it. This unit adds a 2-second hold-to-activate tilt mode that locks the pendulum and lets you project a beam at any freehand angle. On a staircase stringer, a pitched roof soffit, or a sloped deck frame, that's the difference between referencing a real line and estimating off a level one.
The green beam reaches 30 meters of usable visibility outdoors, far enough to cover a full residential deck perimeter from a single center position without the line washing out in daylight. Red beam units typically fade past 10–15 meters in open sun; the green wavelength holds definition significantly further. Pair that with wireless remote control and a 360° rotating head, and the layout becomes a one-person operation: set the unit, walk the perimeter, adjust line mode from wherever you're standing.
The built-in lithium battery is sized for all-day work, no AA drain mid-afternoon on a long deck pour or ledger board run. When you do need to extend height for a multi-level structure, the included rotating head and wall bracket mount directly, and a tripod from our tripod laser level collection threads on via the standard 5/8"-11 mount.
12-Line or 16-Line, Choose the Coverage You Need?

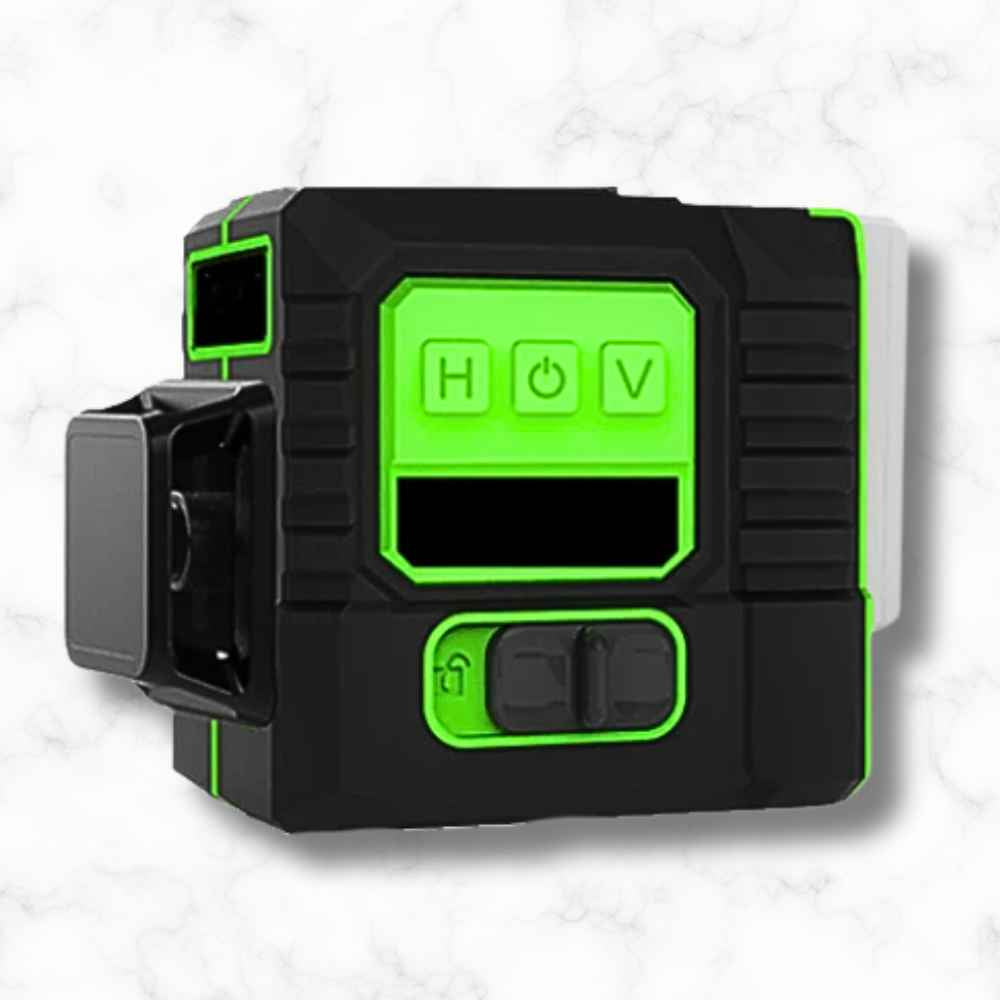

- 360° horizontal + double-sided vertical
- Compact form, efficient for single-structure deck layouts
- Covers floor plane + two vertical walls simultaneously
- Includes remote, wall bracket, rotating head, Oxford bag

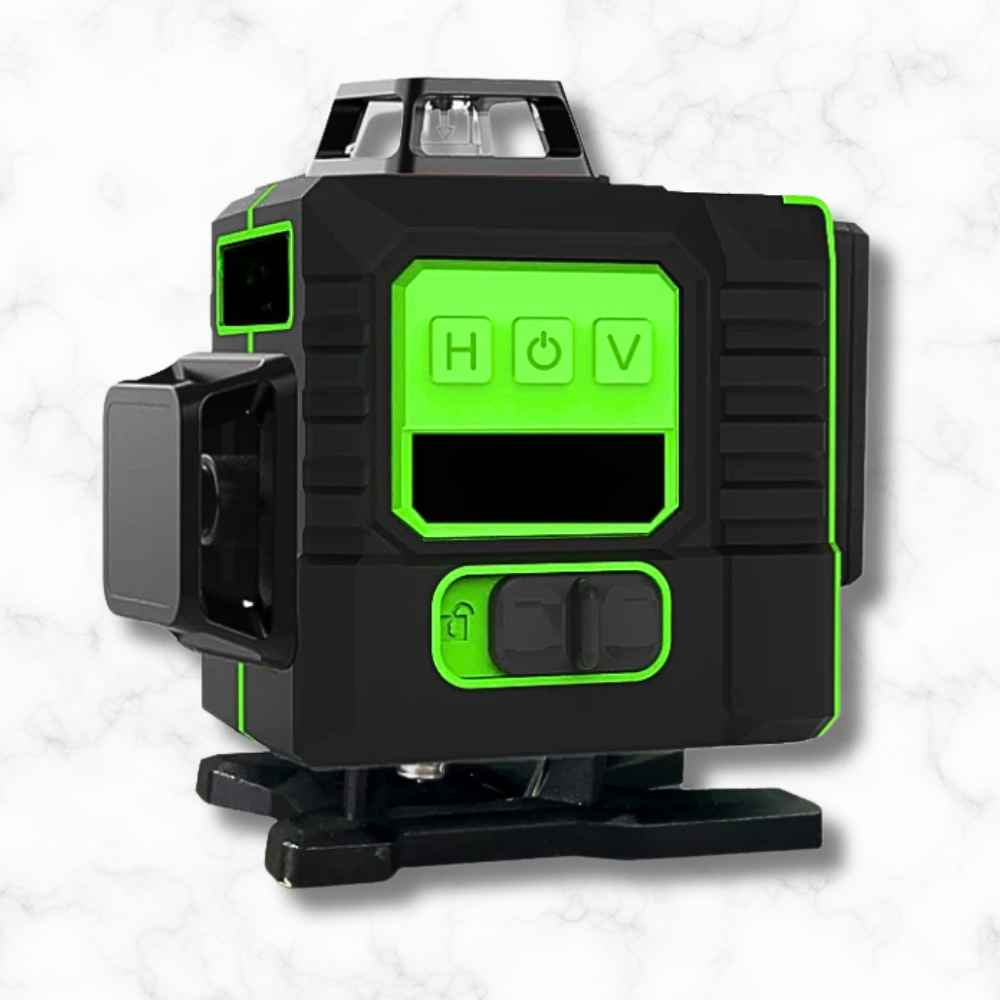

- Full 360° horizontal + 360° vertical, all four walls at once
- Adds ceiling plane projection for covered structures
- 2 adapters included for more mounting flexibility
- Suited to larger multi-level decks or combined indoor/outdoor jobs
Both models share the same auto-leveling system, tilt mode, battery, remote, and 30m outdoor range. The choice comes down to how many reference planes your project needs at once.
Key Specifications of the Laser level deck:
| Accuracy | ≤0.2mm/m in self-leveling mode, holds consistent reference across a full deck span without drift |
| Auto-Leveling Range | ±3°, compensates for minor surface variations when placing on uneven decking or subfloor |
| Tilt Mode | Hold 2 seconds to unlock pendulum, projects beam at any freehand angle for sloped surfaces, stairs, and pitched rooflines |
| Outdoor Visibility | 30m green beam range, remains usable in open daylight without a detector receiver |
| Models Available | 12-Line (3D) for single-structure layouts / 16-Line (4D) for full 360° four-wall + ceiling coverage |
| Control | Wireless remote + 360° rotating head, adjust line mode and orientation from anywhere on site |
| Power | Built-in high-capacity lithium battery with included charger, designed for full-day outdoor sessions |
| Included (16-Line) | Laser unit, remote, charger, 2 adapters, wall bracket, rotating head, Oxford carry bag, manual |
| Included (12-Line) | Laser unit, remote, charger, 1 adapter, wall bracket, rotating head, Oxford carry bag, manual |
Laser Level for Deck Building Built for These Specific Outdoor Jobs
If your next outdoor project involves any grade change, any slope, or any surface that doesn't sit perfectly flat, this is the layout laser that handles the angle without slowing the job down.
Share
FAQ - Laser level
What is a laser level and how does it work?
A laser level projects a beam of coherent light to establish a precise horizontal or vertical reference line across a surface. Self-leveling models use a magnetic pendulum dampened in fluid to find level automatically within ±4° of plumb a process that takes 3 to 5 seconds on most cross-line units.
If you place the tool on a surface inclined beyond that range, the beam flashes as an out-of-level warning rather than projecting a false line. This is a critical safety feature. Cross-line models cover interior rooms up to 65 feet without a detector. Rotary models spin the beam 360 degrees and reach 300+ feet outdoors with a compatible detector.
Is a green beam laser level worth the extra cost over a red beam?
For interior work in lit rooms, yes. Green beams emit at 505–525 nm a wavelength the human eye perceives as significantly brighter than the 630–680 nm red spectrum at identical power output. In a daylit room:
Green beam: stays readable at 50–65 feet without a detector
Red beam: fades to unreliable at 20–30 feet under the same conditions
The trade-off is battery life: green diodes draw more current and reduce runtime by 20–40% vs equivalent red models. For outdoor grading where you run a detector regardless, red beam's battery advantage matters more. For tile layout, cabinet runs, drop ceiling grids, and any daylit interior room, green beam justifies its cost at every price tier in the RayXact catalog.
