How Most Mini Renovation Jobs Get Leveled Without a Dedicated Cross-Line Laser:
The reference system on a typical bathroom or kitchen job is a combination of a long spirit level, a chalk line, and experience-based eyeballing. Each of those three inputs introduces its own margin of error, and none of them catches a substrate problem before the first tile goes up. A chalk line pulled across a wall that slopes 4mm over two meters replicates that slope into every grout joint. A spirit level confirms the bubble, not the plane. Eyeballing fills the gap between the two. The result is a layout that looks correct at the starting point and accumulates error toward the far corner, where it becomes visible and unfixable without pulling material.
Spec to Situation
- ● 3-second self-level, Set the unit on an uneven floor, step back, and the cross beam locks to true horizontal and vertical before you reach the far wall.

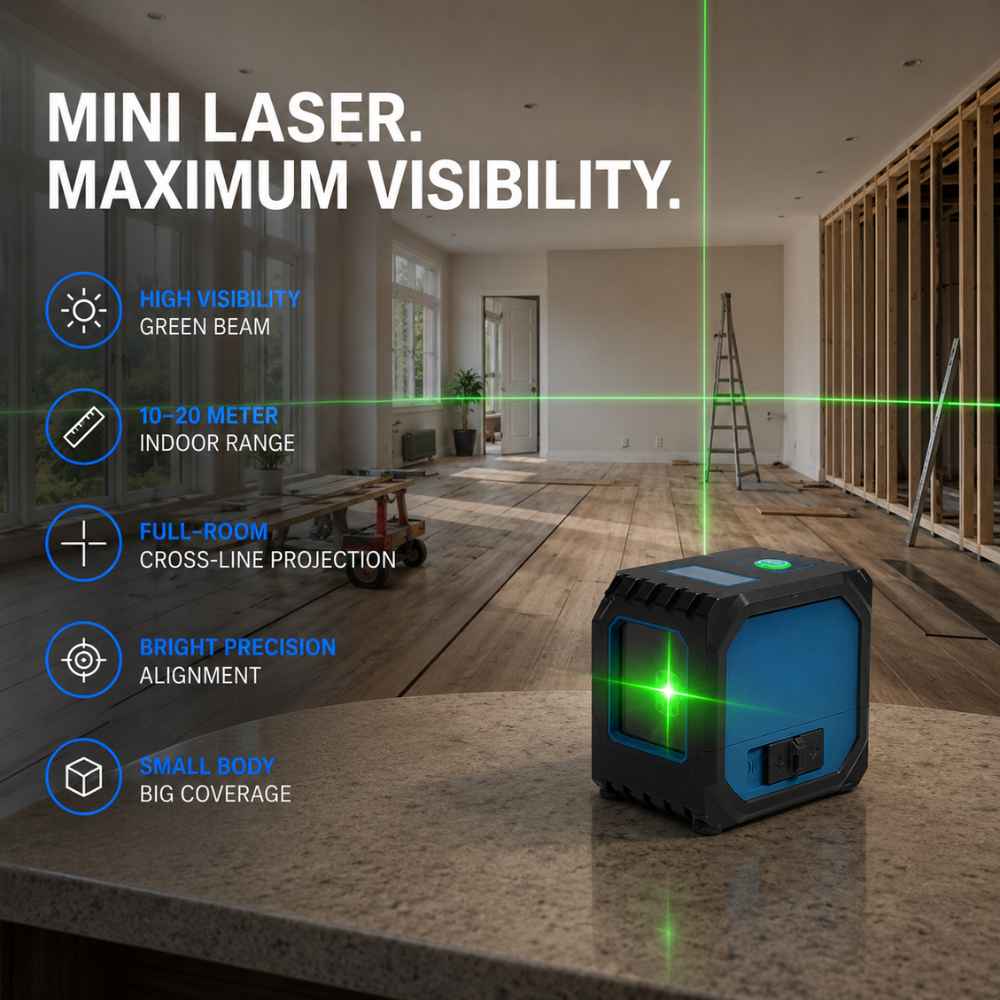

- ● 10 to 20m indoor range, Long enough to shoot a reference line across a full living room wall, a kitchen backsplash run, or a bathroom from corner to corner without repositioning.

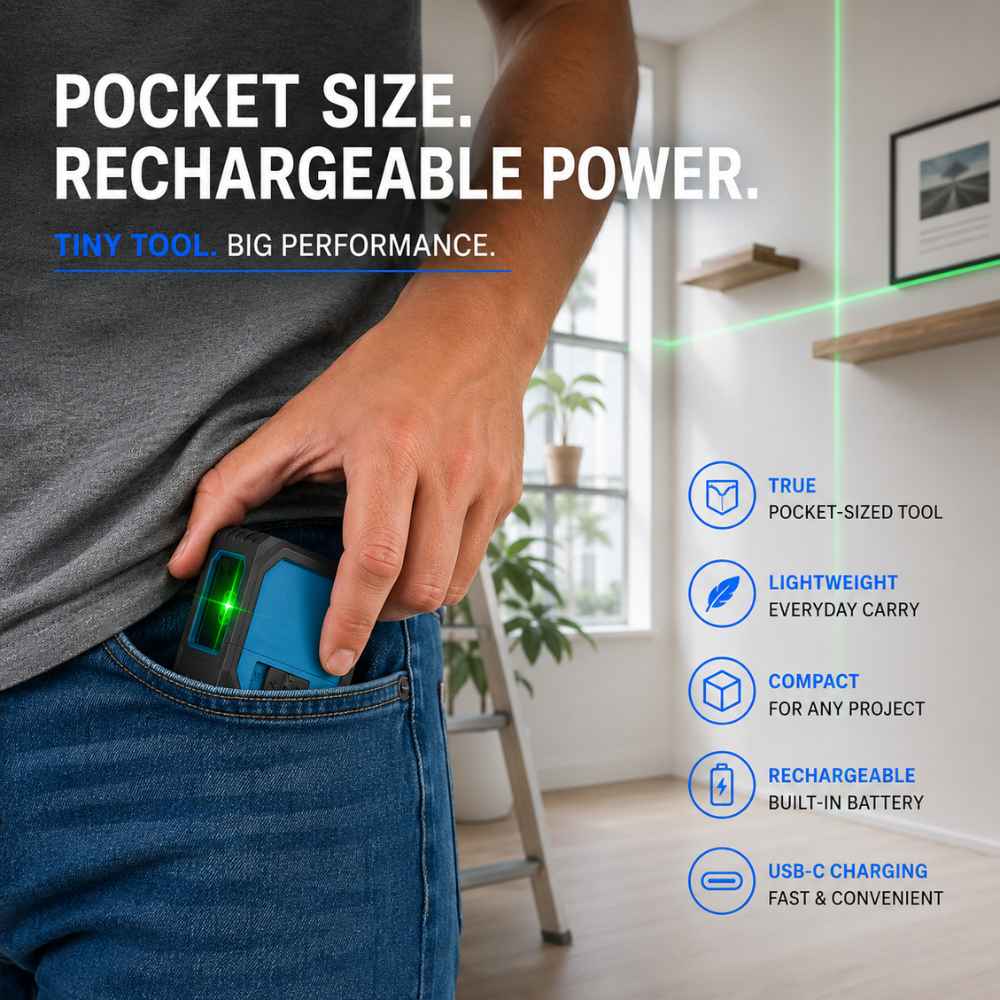

- ● USB-C, 5h runtime, Charge overnight with the same cable as your phone; covers a full tile or cabinet installation day without touching a battery.
- ● AAA battery fallback, hot-swap, When USB charge runs out mid-job, swap to AAA batteries without powering off; your reference line stays active during the change.
- ● Flashing out-of-level alert, If the unit is placed beyond its leveling range, the beam flashes rather than projecting a silent false line, catching substrate problems before a single fastener goes in.

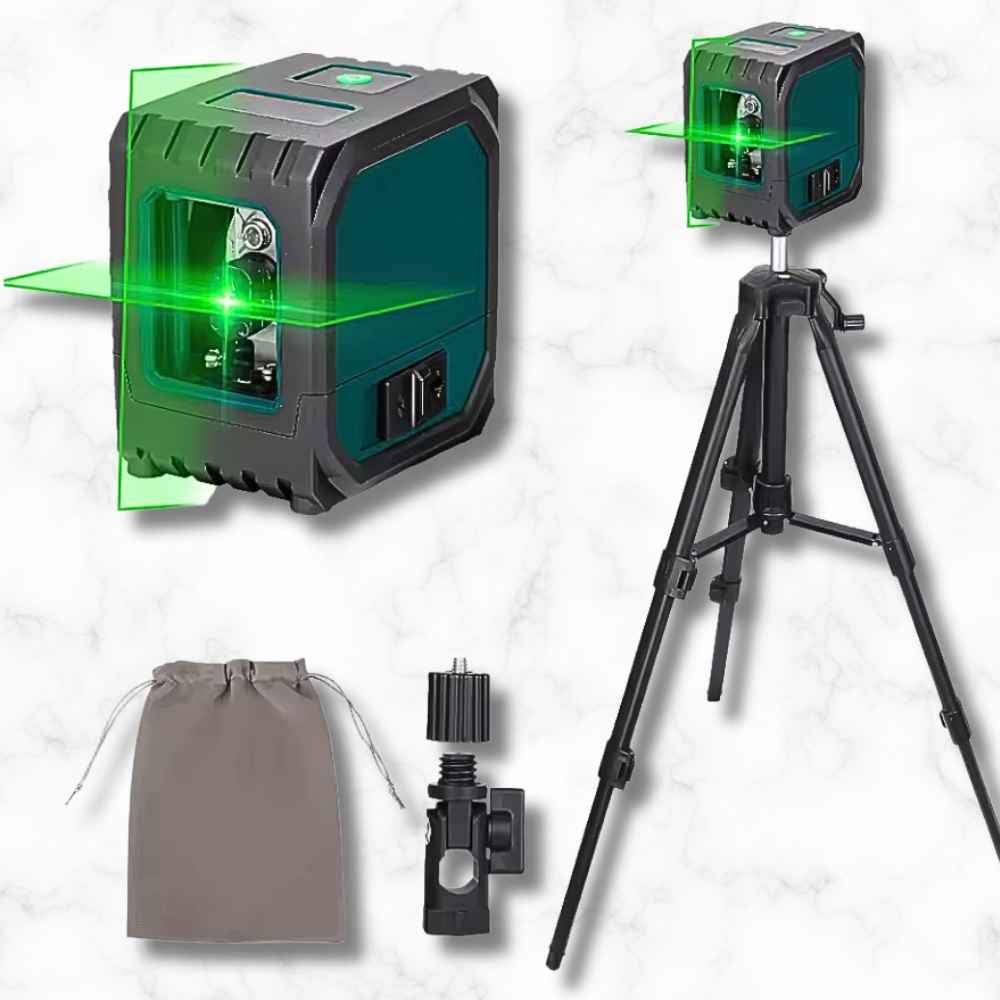

- ● 1/4" threaded base, Threads onto any standard tripod, articulating arm, or magnetic stand; no adapter required for the mounts you already carry.

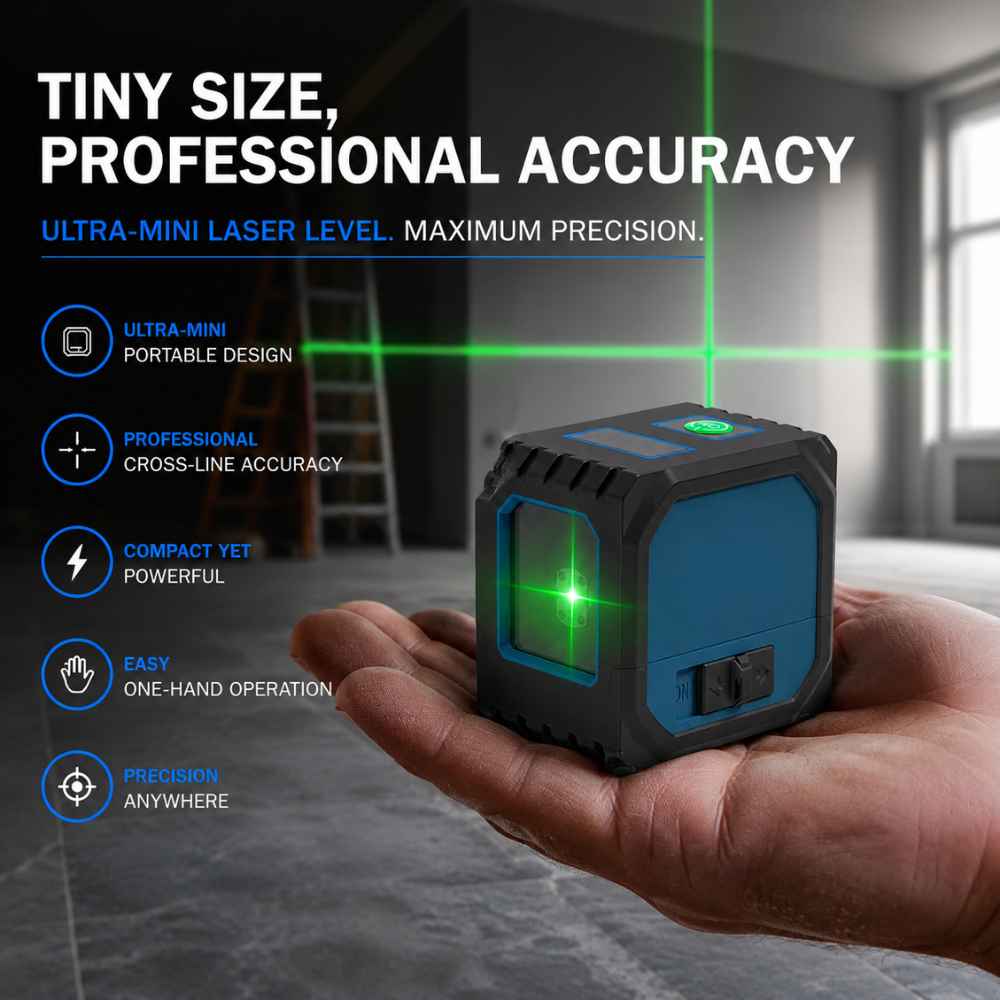

- ● Pocket-sized body, Class 2 laser, Small enough to drop in a jacket pocket between rooms; green beam visibility matches the indoor range without crossing into Class 3 direct-exposure risk.
What Changes When a Mini green laser level Replaces That Three-Part System:

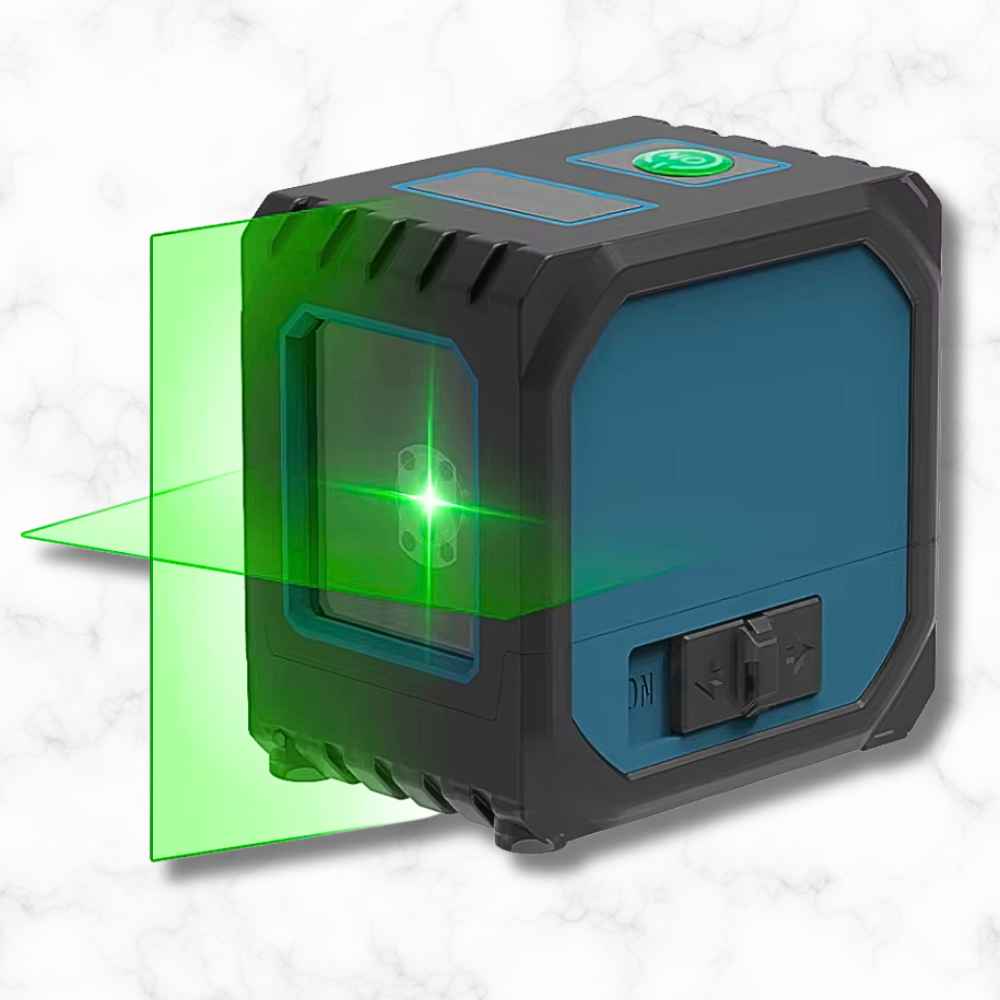

The GoBeam projects one horizontal and one vertical green beam in a cross pattern, visible across 10 to 20 meters indoors, and its pendulum system locks both lines to true level within 3 seconds of placement. The GoBeam mini laser level self-levels in under 3 seconds and projects a green cross line up to 20 meters indoors, with an out-of-level flash warning built into the pendulum system, making it usable as a sole reference tool for full bathroom wall layouts without a separate spirit level check. If the unit is placed on a surface that exceeds its leveling range, the beam flashes rather than projecting a silent false line, the tool refuses to mislead you. I've set this class of laser on bathroom floors where the substrate looked flat to every other instrument in the bag, watched the beam expose a lateral drift across the back wall, and caught it before a single tile went up. That moment does not happen with a chalk line.
The Practical Difference Between a Laser You Carry and One You Leave in the Truck:
A laser leveler that solves the accuracy problem but creates a logistics problem gets left behind. The GoBeam's body is pocket-sized, its base threads onto any standard 1/4" tripod or magnetic stand you already own, and its USB-C port recharges to 5 hours of runtime overnight using the same cable as your phone. When the charge runs out mid-job, AAA batteries swap in directly without powering the unit off, keeping your reference line live during the change. The tool that travels to every job replaces the three-part workaround on every job. The one that stays in the truck does not.
The Right Compact Line Laser for Your Next Renovation Job:
A handyman juggling several bathroom and kitchen jobs a week cannot afford to re-tile a wall because his reference line drifted. The GoBeam's flashing out-of-level alert is the kind of safeguard that catches problems before they become rework, and its pocket size means it travels to every job rather than sitting in the truck. Check the range, confirm the power options, and put it on your next order.
Share
FAQ - Laser level
What is a laser level and how does it work?
A laser level projects a beam of coherent light to establish a precise horizontal or vertical reference line across a surface. Self-leveling models use a magnetic pendulum dampened in fluid to find level automatically within ±4° of plumb a process that takes 3 to 5 seconds on most cross-line units.
If you place the tool on a surface inclined beyond that range, the beam flashes as an out-of-level warning rather than projecting a false line. This is a critical safety feature. Cross-line models cover interior rooms up to 65 feet without a detector. Rotary models spin the beam 360 degrees and reach 300+ feet outdoors with a compatible detector.
Is a green beam laser level worth the extra cost over a red beam?
For interior work in lit rooms, yes. Green beams emit at 505–525 nm a wavelength the human eye perceives as significantly brighter than the 630–680 nm red spectrum at identical power output. In a daylit room:
Green beam: stays readable at 50–65 feet without a detector
Red beam: fades to unreliable at 20–30 feet under the same conditions
The trade-off is battery life: green diodes draw more current and reduce runtime by 20–40% vs equivalent red models. For outdoor grading where you run a detector regardless, red beam's battery advantage matters more. For tile layout, cabinet runs, drop ceiling grids, and any daylit interior room, green beam justifies its cost at every price tier in the RayXact catalog.
