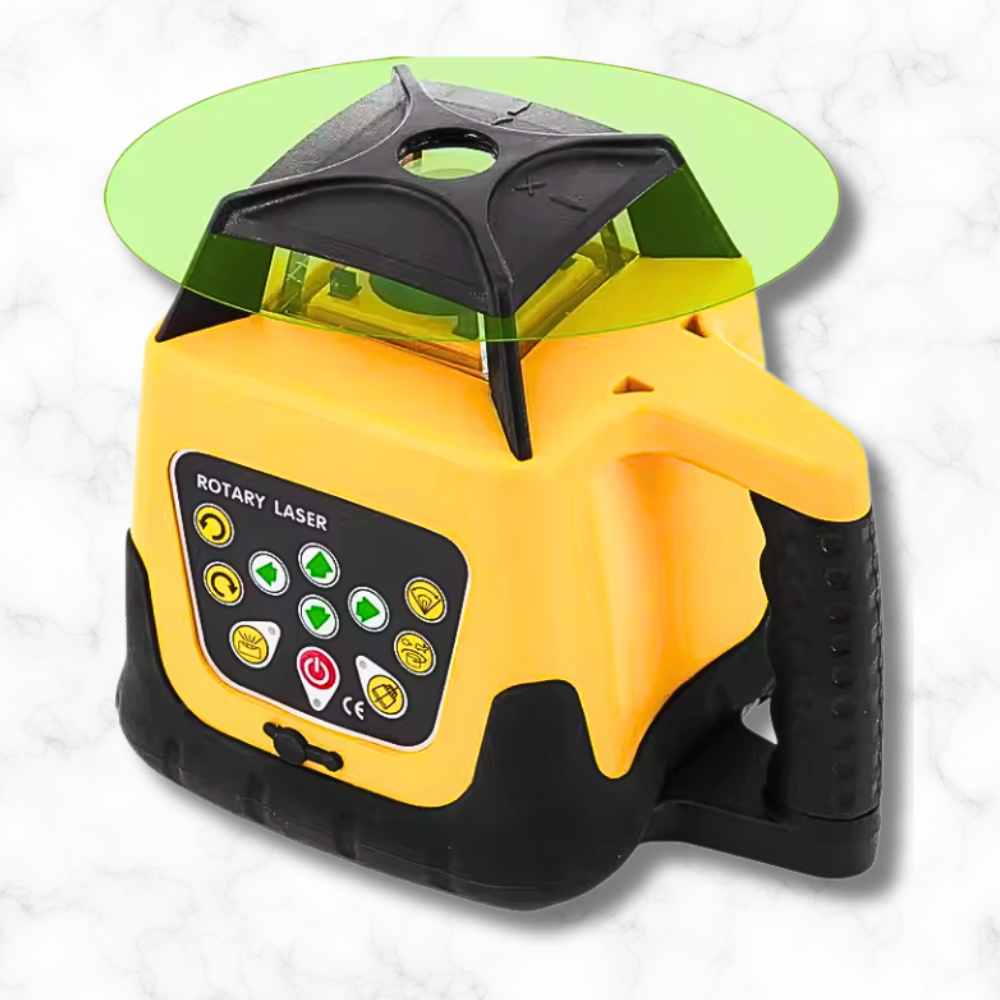

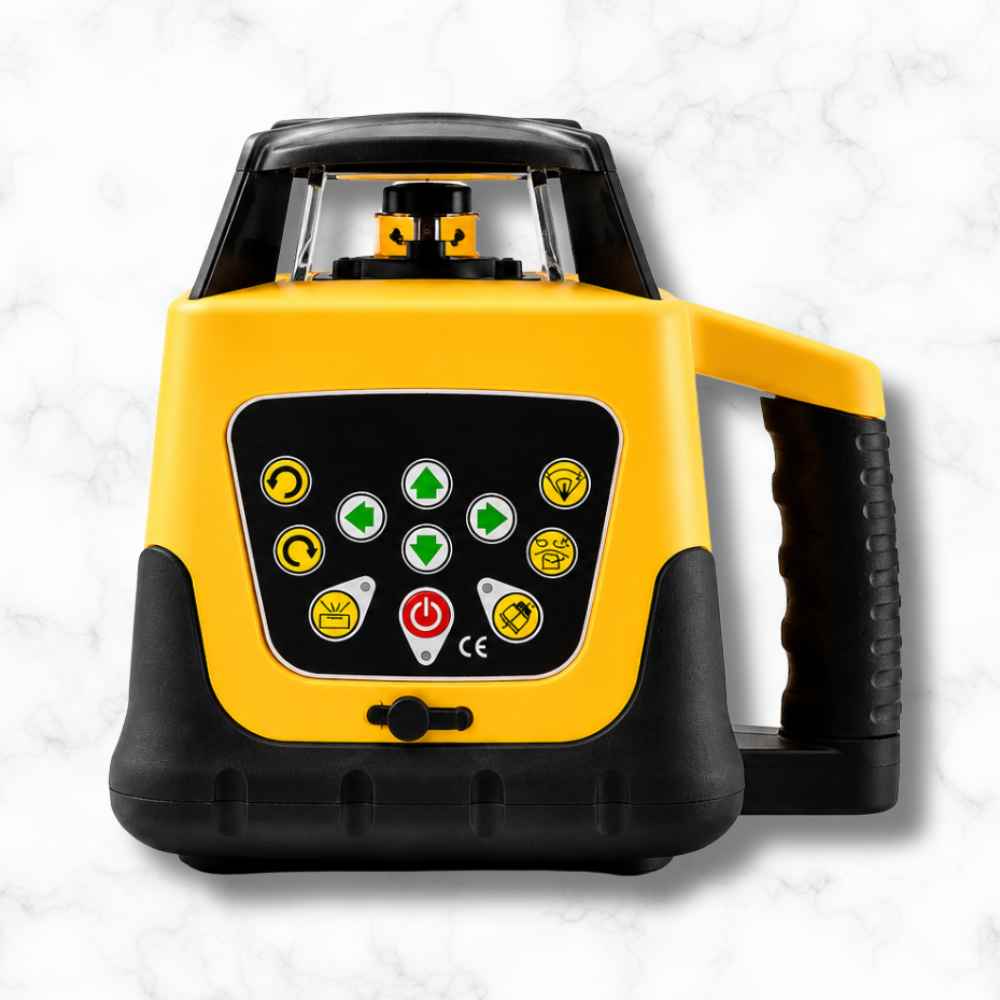

Rotary Laser Level for Grading

When a Standard Rotary Laser Level Is Not Enough for Grade Work:

Most rotary laser levels on a job site do one thing well: they hold a flat horizontal plane. The moment a concrete finisher needs to set a 1.5% drainage grade across a 200-foot pad, or a site contractor has to establish a consistent pipe invert over broken ground, a standard self-leveling unit becomes a liability. That is the gap this rotary grading laser level fills.

Rotary Laser Level for Grading, Dual-Grade Capability That Works on Real Ground:

The unit holds a bi-directional grade adjustment of ±5° on both axes simultaneously, which covers the full range of practical drainage slopes, driveway pitches, and foundation offsets encountered on residential and light commercial sites. The self-leveling sensor compensates automatically within that range, so the beam locks to the programmed grade without manual re-checking between setups. On a 300-foot slab pour, that single detail eliminates two or three verification passes per day.

500-Meter Range on a Rotary Grading Laser Level Built for Exterior Work:

Working range with the included detector reaches 500 meters diameter, which is more than enough for any residential grading layout and handles light commercial pad work without repositioning. The IP54 rating covers the dust and intermittent water exposure that come standard on any exterior dirt work. Spinning speed runs from 60 to 600 RPM with selectable direction-scan angles of 10°, 45°, 90°, and 180°, so the beam can be narrowed to a specific grade corridor instead of broadcasting a full 360° plane across a cluttered site.

What You Get in the Rotary Laser Level for Grading Level Kit:

Everything needed to start grading on day one is included in the case:

• Rotary grading laser level unit with bi-directional ±5° grade adjustment and 635 nm red beam
• Laser detector rated to 500 m diameter working range
• Remote control for grade and RPM adjustment from up to 20 m away
• Laser target, protective glasses, charger, and carry case
• 18-hour battery runtime on a full charge, rated from 4°F to 113°F

Tripod and grade rod are sold separately.

Dane Spruill's Verdict on This Rotary Grading Laser Level:

With 22 years of site work across the Mid-South, including drainage retrofits and pad grading on dozens of residential builds, I selected this rotary grading laser level because the combination of dual-grade capability, 500-meter detector range, and 18-hour battery runtime puts it in a category that previously required spending twice the price. If your work regularly involves drainage grades, pipe inverts, or compound slope layouts, this unit earns its place on the truck.
